Level Bubble Vials
Level bubble vials are the working element inside every bubble spirit level, and the part that decides whether the finished tool reads true. The vial body is filled with a low-viscosity fluid and sealed with a bubble of fixed size; the curvature of the inner face, the fill ratio and the accuracy of the graduation together set the sensitivity. Get any one of them wrong and the instrument is decorative.
OVICTOR TECHNICAL GLASS has supplied level bubble vials since 2008, wholesale and on an OEM basis, to tool manufacturers and assemblers in more than eleven countries. Standard patterns are held; non-standard bodies, fill colours and graduations are made to drawing.
The range
Eight body styles cover most assembly requirements.

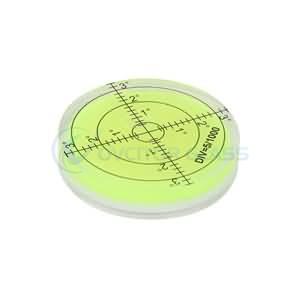

Circular and bullseye types read in two axes at once, which is what a tripod head, a washing machine foot or a caravan floor needs. A circular bubble level is supplied in plastic housings from small indicator sizes up to large bullseye bodies where the bubble has to be visible across a room.
Cylinder and block types read in one axis and are the pattern used in straight-edge levels and frame levels. The PMMA bubble vial is machined rather than moulded, which holds the inner curve more tightly and suits levels sold on stated accuracy.

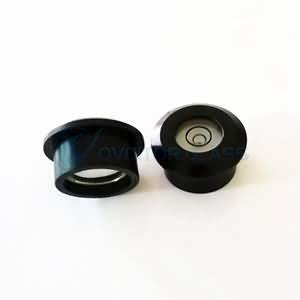

The T type level vial gives a triangular body that seats into an extruded frame without a separate carrier, and the keychain and press-fit patterns are made for volume assembly where the vial is pushed into a prepared recess.
A magnetic level vial carries a magnet on the back face so the indicator holds itself against steelwork — the pattern usually specified for television wall brackets, shelving kits and other products where the end user levels the item once during installation.
Accuracy and fill
Sensitivity is quoted as the angle that moves the bubble by one graduation, and it follows directly from the radius of the inner surface: a flatter curve gives a more sensitive vial and a slower one to settle. Choosing sensitivity is therefore a trade-off against how quickly the user wants a reading, and it is worth stating the intended application rather than a number when enquiring.
This is the single most common specification error in level bubble vials: ordering the most sensitive body available for a tool whose user expects an instant reading.
Fill fluids are selected for viscosity and for the temperature band the finished product will be sold into, since a fluid that reads well at room temperature can become sluggish in cold storage or outdoor winter use. Bubble colour is normally yellow-green for contrast, and other colours are available on volume orders.
Ordering for OEM assembly
For a production order the useful information is the body dimensions, the mounting method — press fit, adhesive, screw or magnet — the sensitivity or the application it has to suit, and the annual quantity. A drawing or a sample of the existing part is ideal; where neither exists, dimensioned photographs of the recess the vial has to sit in are usually enough to work from.
Samples are supplied free of charge, with delivery charged and then refunded against the subsequent order. Small quantities are welcome as well as bulk, and a spirit level vial can be branded or graduated to your own artwork on production runs. Level bubble vials are packed in trays for automated assembly where the line requires it.
Frequently asked questions
What is the difference between a circular and a cylinder vial?
A circular vial reads level in two axes simultaneously and is what you want when a surface has to be flat rather than simply horizontal — tripod heads, appliance feet, caravan floors. A cylinder or block vial reads one axis only, along its own length, and is the pattern fitted into straight-edge and frame levels where the user is checking a single line.
Can vials be made to our own dimensions?
Yes. Body size, mounting style, graduation and fill colour are all made to order, and standard patterns are held for faster delivery. Supplying a drawing or a sample of the part currently in use is the quickest route to an accurate quotation; dimensioned photographs of the mounting recess will also do where no drawing exists.
Do you supply samples before a production order?
Samples are provided free of charge. The delivery charge is payable initially and is refunded once an order is placed. This applies to standard patterns and, on request, to a first-off from a made-to-drawing body, so the fit and the reading can both be checked in the actual assembly before committing to a quantity.
What quantities do you accept?
Both wholesale volumes and smaller orders are accepted; there is no minimum that rules out a first trial order. Payment terms are 100% in advance for orders up to 1000 USD, and 30% in advance with the balance before shipment above that figure, or by negotiation.
