Polished Reflex Gauge Glasses

Product Item：OV-0014

Standard: DIN7081

Material : Borosilicate glass 4.0

Type: reflex type gauge glass

Use:observe liquid level

Description

Polished reflex gauge glass is also name Polished Reflexion Gauge Glass which are made of specialized formular tempered borosilicate glass 4.0, distinguished by the grooves down the face. Polished flex gauge glass is no different from conventional reflex gauge glass in terms of technical parameters. The surface polishing treatment makes the glass more transparent to meet customers' differentiated needs.
There is 1,4 and 5 grooves on the glass for different market in the word.The grooves increase the angle of refraction which makes the visibility of the liquid level is much better than when using Transparent gauge glass. Mica is not suitable for Reflex Gauge Glass, and so without this protection they are not suitable for alkaline steam applications.
Reflex glasses may be used in pressure up to 35 bar at the max working temperature. In this area are sufficiently resistant to the environment. The reading is clear and contrasting. In the case of factors other than steam reflex glasses may be used up to 414 bar or 320˚C.

Main Technical Data

Working Conditions	Max Operating Temperature		Max Operating Pressue
	°C	°F	bar	Mpa	psi
Saturated steam or hot water in direct contact with reflex or transparent gauge glass	243	470	35	3.5	500

Saturated steam or hot water in contact with flat gauge glasses protected with mica	320	608	103	10.3	1500

Non-corrosive, non-steam service and no technically significant glass attack, with reflex or transparent gauge glass	38	100	280	28	4000


Transparent gauge glass in contact with medias with no technically significant glass attack	38	100	345	34.5	5000


High pressure transparent gauge glass in special gauges	38	100	414	41.4	6000

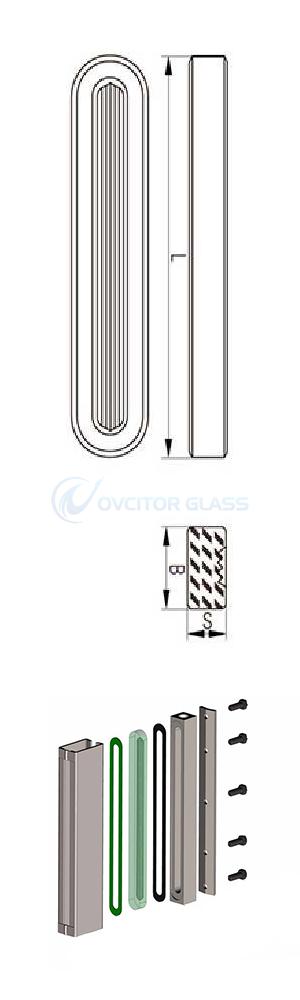

Size & Dimentions

Type A
No	L	B	S	Roman No	Size	Part No
0	95	30	17	-	95X30X17	OVRA00
1	115	30	17	I	115X30X17	OVRA01
2	140	30	17	II	140X30X17	OVRA02
3	165	30	17	III	165X30X17	OVRA03
4	190	30	17	IV	190X30X17	OVRA04
5	220	30	17	V	220X30X17	OVRA05
6	250	30	17	VI	250X30X17	OVRA06
7	280	30	17	VII	280X30X17	OVRA07
8	320	30	17	VIII	320X30X17	OVRA08
9	340	30	17	IX	340X30X17	OVRA09
10	370	30	17	X	370X30X17	OVRA10
11	400	30	17	XI	400X30X17	OVRA11
Type B
No	L	B	S	Roman No	Size	Part No
0	95	34	17	-	95X34X17	OVRB00
1	115	34	17	I	115X34X17	OVRB01
2	140	34	17	II	140X34X17	OVRB02
3	165	34	17	III	165X34X17	OVRB03
4	190	34	17	IV	190X34X17	OVRB04
5	220	34	17	V	220X34X17	OVRB05
6	250	34	17	VI	250X34X17	OVRB06
7	280	34	17	VII	280X34X17	OVRB07
8	320	34	17	VIII	320X34X17	OVRB08
9	340	34	17	IX	340X34X17	OVRB09
10	370	34	17	X	370X34X17	OVRB10
11	400	34	17	XI	400X34X17	OVRB11
Type H
No	L	B	S	Roman No	Size	Part No
0	95	34	22	-	95X34X22	OVRH00
1	115	34	22	I	115X34X22	OVRH01
2	140	34	22	II	140X34X22	OVRH02
3	165	34	22	III	165X34X22	OVRH03
4	190	34	22	IV	190X34X22	OVRH04
5	220	34	22	V	220X34X22	OVRH05
6	250	34	22	VI	250X34X22	OVRH06
7	280	34	22	VII	280X34X22	OVRH07
8	320	34	22	VIII	320X34X22	OVRH08
9	340	34	22	IX	340X34X22	OVRH09
10	370	34	22	X	370X34X22	OVRH10
11	400	34	22	XI	400X34X22	OVRH11
